Usage:

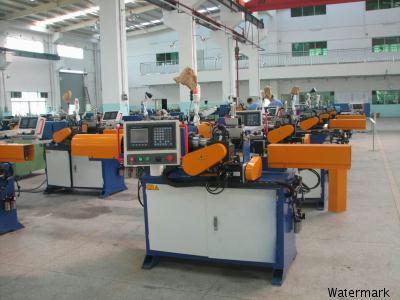

This full automatic NC spinning machine is universal machine for manufacturing the parts that are thin-wall and hollow. It is the replacement of manual spinning machine to meet with requirement of high precision and automatic production. This machine’s R&D is made by ourselves. It has feature of high automation, high efficiency, easy program, stable run and dependable property.
It also has features as follows:
a. NC double coordinate spinning
b. PLC control, loading and unloading automatically, high speed and work efficiency.Cutting and burring automatically.
产成品 Finished-part
技术参数 technical specification
|
|
Φ30 |
Φ50 |
Φ80 |
|
tube diameter(mm) |
Φ12.7-Φ30 |
Φ30-Φ50 |
Φ30-Φ90 |
|
tube thickness(mm) |
0.4-1.5 |
0.8-2.0 |
0.5-2.0 |
|
tube length(mm) |
50-200 |
50-350 |
50-350 |
|
lateral travel(mm) |
220 |
220 |
220 |
|
longitudinal travel(mm) |
300 |
300 |
220 |
|
work speed(sec/head) |
≤50 |
≤50 |
≤50 |
|
forming error（mm） |
±0.05 |
±0.05 |
±0.05 |
|
location precision of pipe（mm） |
0.7 |
0.7 |
0.7 |
|
power |
AC380V |
AC380V |
AC380V |
|
pneumatic pressure（Mpa） |
0.45-0.65 |
0.45-0.65 |
0.45-0.65 |
