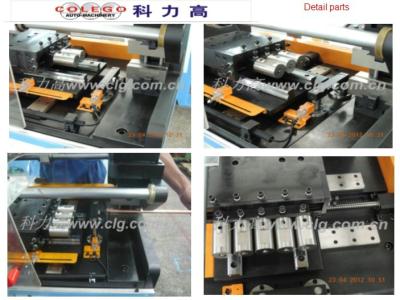

Details
用途 Usage

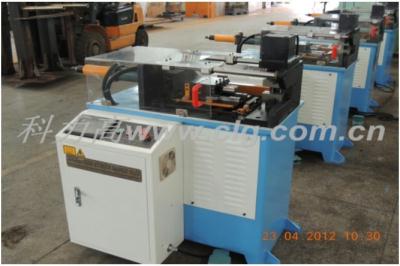

- This machine is specially used for pipe end forming.It is used for end expanding, sinking or sealing,to meet requirement of production technology.Mainly used for air-conditioning, automotive and other industries.
特点 Features
-
1) Easy operation
2) All procedures can be completed via only one switch
3) Can process tube end with many special shapes by changing dies
4) Various styles
5) Pneumatic power hydraulic and spinning machine
6) Three models of single, double and triple positions to meet production
requirements
7) Good adaptability
8) Fully automatic processing with loading device

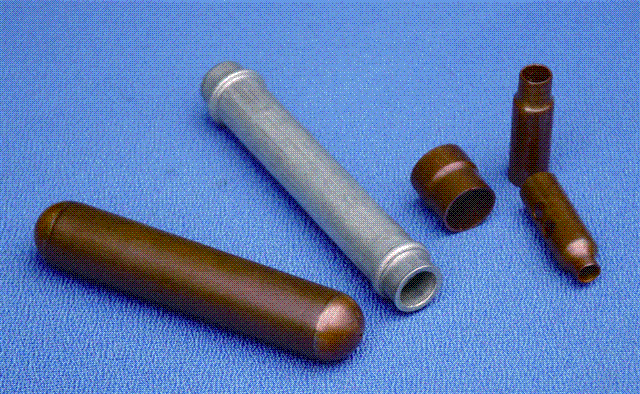

产成品 Finished-part
技术参数 technical specification
|
Max pipe dia |
φ30mm(copper ,aluminum) |
|
Max work thickness |
2.5mm |
|
Work station |
1 |
|
Work efficiency |
3-6sec/cycle |
|
Electric control mode |
PLC |
|
Operation mode |
Auto / manual / jog |
|
Loading mode |
Manual |
|
Driving mode |
hydraulic |
|
Work mode |
Cool upending and spinning |
|
Heading travel |
100mm ( adjustable ) |
|
Max clamping force |
4000kg |
|
Max clamping travel |
50mm |
|
Max stress |
4000kg |
|
Tolerance of depth |
‹ 0.5mm |
|
Tolerance of coaxial |
‹ 0.1mm |
|
Power |
3 phase 350V50HZ |
|
Hydraulic motor power |
3.75kw |
|
Hydraulic system pressure |
8Mpa |
|
Notice: Specific technical parameters is according to order contract |
|
